Semi Log Plot

Data visualization is a powerful tool in the realm of data analysis, enabling us to interpret complex datasets more effectively. One of the most useful types of plots for visualizing data with exponential growth or decay is the Semi Log Plot. This type of plot combines the features of both linear and logarithmic scales, making it ideal for datasets that span several orders of magnitude. In this post, we will delve into the intricacies of Semi Log Plots, exploring their applications, creation, and interpretation.

Table of Contents

Understanding Semi Log Plots

A Semi Log Plot is a graph that uses a logarithmic scale on one axis and a linear scale on the other. This combination allows for the visualization of data that exhibits exponential growth or decay, making it easier to identify trends and patterns that might be obscured in a linear-linear plot. The logarithmic scale compresses the data, making it possible to see details that would otherwise be lost in a linear plot.

There are two main types of Semi Log Plots:

Semi-log x plot: The x-axis is logarithmic, and the y-axis is linear.

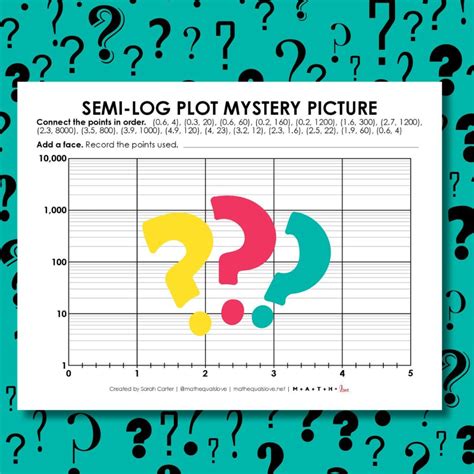

Semi-log y plot: The y-axis is logarithmic, and the x-axis is linear.

Applications of Semi Log Plots

Semi Log Plots are widely used in various fields due to their ability to handle data with large ranges. Some common applications include:

Economics: Analyzing economic growth, inflation rates, and stock market trends.
Biology: Studying bacterial growth, population dynamics, and enzyme kinetics.
Physics: Investigating radioactive decay, electrical currents, and signal attenuation.
Engineering: Examining material fatigue, signal processing, and system dynamics.

In each of these fields, the Semi Log Plot provides a clear and concise way to visualize data that spans multiple orders of magnitude, making it easier to identify trends and anomalies.

Creating a Semi Log Plot

Creating a Semi Log Plot involves several steps, from data preparation to plotting. Below is a step-by-step guide to creating a Semi Log Plot using Python and the Matplotlib library.

Step 1: Import Necessary Libraries

First, you need to import the necessary libraries. For this example, we will use Matplotlib for plotting and NumPy for data manipulation.

import matplotlib.pyplot as plt
import numpy as np

Step 2: Prepare Your Data

Next, prepare your data. For this example, let's create a dataset that exhibits exponential growth.

# Generate data
x = np.linspace(1, 10, 100)
y = np.exp(x)

Step 3: Create the Semi Log Plot

Now, create the Semi Log Plot. We will use a semi-log y plot for this example.

# Create the plot
plt.figure(figsize=(10, 6))
plt.semilogy(x, y, label='Exponential Growth')

# Add labels and title
plt.xlabel('Linear Scale (x)')
plt.ylabel('Logarithmic Scale (y)')
plt.title('Semi Log Plot Example')

# Add a legend
plt.legend()

# Show the plot
plt.show()

This code will generate a Semi Log Plot with a linear x-axis and a logarithmic y-axis, clearly showing the exponential growth of the data.

📝 Note: Ensure that your data does not contain negative or zero values on the logarithmic axis, as this will result in errors.

Interpreting Semi Log Plots

Interpreting a Semi Log Plot requires understanding how the logarithmic scale affects the data. Here are some key points to consider:

Exponential Trends: In a Semi Log Plot, exponential trends appear as straight lines. This makes it easy to identify and compare different exponential growth or decay rates.
Data Compression: The logarithmic scale compresses the data, making it easier to see details in datasets with large ranges. This is particularly useful for data that spans several orders of magnitude.
Comparing Rates: Semi Log Plots are useful for comparing the rates of different processes. For example, in biology, you can compare the growth rates of different bacterial strains.

By carefully interpreting the Semi Log Plot, you can gain valuable insights into the underlying data and make informed decisions based on the trends and patterns you observe.

Example: Analyzing Bacterial Growth

Let's consider an example where we analyze bacterial growth using a Semi Log Plot. Bacterial growth often follows an exponential pattern, making it an ideal candidate for this type of plot.

Suppose we have the following data representing the number of bacteria over time:

Time (hours)	Bacterial Count
0	100
1	200
2	400
3	800
4	1600
5	3200

We can plot this data using a Semi Log Plot to visualize the exponential growth of the bacteria.

# Data
time = [0, 1, 2, 3, 4, 5]
bacterial_count = [100, 200, 400, 800, 1600, 3200]

# Create the plot
plt.figure(figsize=(10, 6))
plt.semilogy(time, bacterial_count, marker='o', linestyle='-', label='Bacterial Growth')

# Add labels and title
plt.xlabel('Time (hours)')
plt.ylabel('Bacterial Count (log scale)')
plt.title('Bacterial Growth Analysis')

# Add a legend
plt.legend()

# Show the plot
plt.show()

This Semi Log Plot clearly shows the exponential growth of the bacterial population over time. The logarithmic scale on the y-axis compresses the data, making it easier to see the details of the growth pattern.

📝 Note: When interpreting Semi Log Plots, be mindful of the scale changes. The logarithmic scale can sometimes distort the perception of data points, so it's important to consider the context and the nature of the data.

In the final analysis, Semi Log Plots are invaluable tools for visualizing and interpreting data with exponential trends. By understanding how to create and interpret these plots, you can gain deeper insights into your data and make more informed decisions. Whether you are analyzing economic trends, biological growth, or physical phenomena, Semi Log Plots provide a clear and concise way to visualize complex datasets.
