Romex 12 2

Electrical wiring is a critical aspect of any construction or renovation project. One of the most commonly used types of electrical wiring in residential settings is Romex 12 2. This type of wiring is essential for ensuring safe and efficient electrical distribution throughout a home. Understanding the specifications, applications, and installation guidelines for Romex 12 2 is crucial for both professional electricians and DIY enthusiasts.

Table of Contents

Understanding Romex 12 2 Wiring

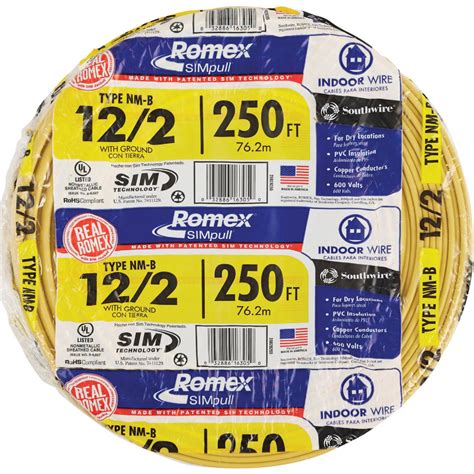

Romex 12 2 is a type of non-metallic sheathed cable (NM-B) that consists of two insulated conductors and a bare copper ground wire. The "12" in Romex 12 2 refers to the gauge of the wire, which is 12 AWG (American Wire Gauge). The "2" indicates that there are two insulated conductors, typically black and white, with the ground wire being bare or green.

This wiring is designed to handle up to 20 amps of current and is commonly used for 120-volt circuits. It is suitable for a variety of applications, including lighting circuits, outlet circuits, and small appliance circuits. The non-metallic sheathing provides protection against physical damage and moisture, making it a reliable choice for both indoor and outdoor use.

Applications of Romex 12 2 Wiring

Romex 12 2 wiring is versatile and can be used in various electrical projects. Some of the most common applications include:

Lighting Circuits: Ideal for powering lighting fixtures in residential settings.
Outlet Circuits: Suitable for powering standard outlets in living rooms, bedrooms, and kitchens.
Small Appliance Circuits: Perfect for powering small appliances like lamps, fans, and chargers.
Outdoor Use: Can be used for outdoor lighting and power outlets, provided it is protected from direct sunlight and moisture.

Installation Guidelines for Romex 12 2 Wiring

Proper installation of Romex 12 2 wiring is essential for ensuring safety and compliance with electrical codes. Here are the steps to follow for a successful installation:

Materials Needed

Romex 12 2 wiring
Wire strippers
Wire nuts
Electrical tape
Circuit breaker
Electrical box
Screwdriver

Step-by-Step Installation

1. Plan the Circuit: Determine the layout of your circuit, including the locations of outlets, switches, and lighting fixtures. Ensure that the total load on the circuit does not exceed 20 amps.

2. Run the Wire: Install the Romex 12 2 wiring through the walls, ceilings, or floors, ensuring it is securely fastened every 4.5 feet and within 12 inches of each box. Use staples or cable clips to secure the wire.

3. Strip the Wire: At each junction box, strip about 6 inches of the outer sheathing to expose the individual conductors. Strip about ½ inch of insulation from the ends of the black and white wires.

4. Connect the Wires: Connect the black wire to the brass screw on the outlet or switch, and the white wire to the silver screw. Connect the bare or green ground wire to the green ground screw on the outlet or switch.

5. Secure the Connections: Use wire nuts to secure the connections, ensuring that the wires are tightly twisted together. Wrap electrical tape around the wire nuts for added security.

6. Install the Outlet or Switch: Place the outlet or switch in the junction box and secure it with screws. Ensure that the wires are neatly tucked into the box.

7. Test the Circuit: Turn on the circuit breaker and test the outlet or switch to ensure it is functioning properly.

🔧 Note: Always turn off the power at the circuit breaker before working on any electrical wiring. Use a non-contact voltage tester to ensure the wires are not live.

Safety Considerations

Working with electrical wiring can be dangerous if not done correctly. Here are some safety considerations to keep in mind when installing Romex 12 2 wiring:

Turn Off Power: Always turn off the power at the circuit breaker before beginning any electrical work.
Use Proper Tools: Use insulated tools designed for electrical work to minimize the risk of shock.
Avoid Overloading: Ensure that the total load on the circuit does not exceed 20 amps to prevent overheating and potential fires.
Proper Grounding: Always connect the ground wire to ensure proper grounding and safety.
Follow Codes: Adhere to local electrical codes and regulations to ensure a safe and compliant installation.

Common Mistakes to Avoid

Even experienced electricians can make mistakes when installing electrical wiring. Here are some common mistakes to avoid when working with Romex 12 2 wiring:

Incorrect Wire Gauge: Using the wrong gauge of wire can lead to overheating and potential fires. Always use 12 AWG wire for Romex 12 2.
Improper Connections: Loose or improperly secured connections can cause arcing and fires. Ensure all connections are tight and secure.
Overloading Circuits: Exceeding the 20-amp limit can cause overheating and potential fires. Plan your circuit layout carefully to avoid overloading.
Inadequate Support: Failure to secure the wire every 4.5 feet can lead to damage and potential hazards. Use staples or cable clips to secure the wire.
Ignoring Grounding: Proper grounding is essential for safety. Always connect the ground wire to ensure a safe installation.

Troubleshooting Romex 12 2 Wiring Issues

Even with careful installation, issues can arise with Romex 12 2 wiring. Here are some common problems and their solutions:

No Power at Outlet

If there is no power at the outlet, check the following:

Ensure the circuit breaker is turned on.
Check for loose or improperly secured connections.
Verify that the wire is properly connected to the outlet.
Use a non-contact voltage tester to check for power at the outlet.

Overheating Wires

If the wires are overheating, it may be due to:

Overloading the circuit.
Improper wire gauge.
Loose or improperly secured connections.

To resolve overheating issues, reduce the load on the circuit, ensure the correct wire gauge is used, and secure all connections properly.

Short Circuits

Short circuits can occur due to:

Exposed wires.
Improper connections.
Damaged insulation.

To fix a short circuit, identify and repair the damaged section of the wire, ensure all connections are secure, and replace any damaged insulation.

🛠️ Note: If you are unsure about any aspect of the installation or troubleshooting process, consult a licensed electrician to ensure safety and compliance.

Conclusion

Romex 12 2 wiring is a versatile and reliable choice for residential electrical projects. Understanding its specifications, applications, and installation guidelines is essential for ensuring a safe and efficient electrical system. By following the proper installation steps, adhering to safety considerations, and avoiding common mistakes, you can successfully install Romex 12 2 wiring in your home. Always prioritize safety and consult a professional if needed to ensure a compliant and secure electrical installation.
