Parts Of A Staircase

Staircases are an essential architectural feature in both residential and commercial buildings, providing vertical access between different levels. Understanding the parts of a staircase is crucial for anyone involved in construction, renovation, or interior design. This knowledge ensures that staircases are not only functional but also safe and aesthetically pleasing.

Understanding the Basic Structure of a Staircase

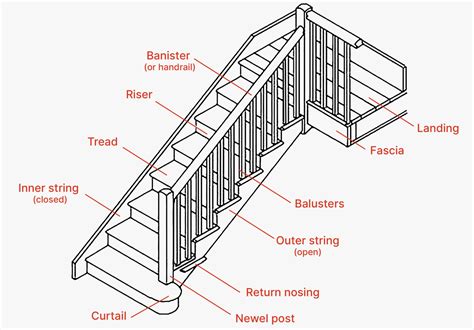

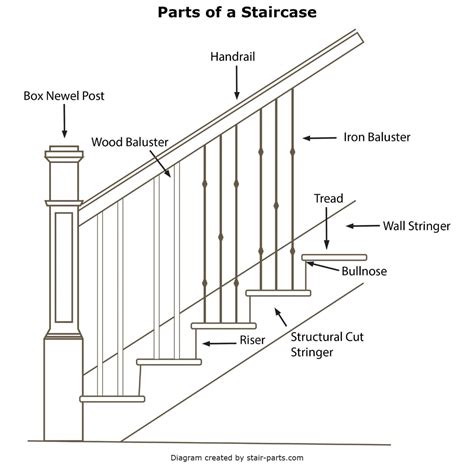

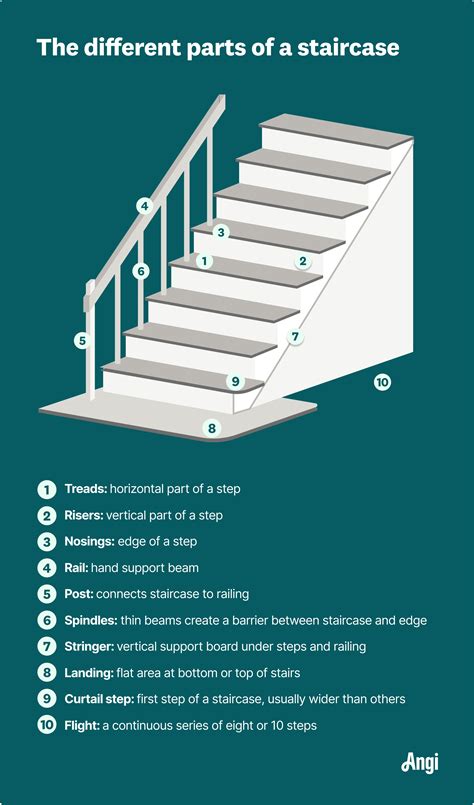

A staircase is composed of several key parts of a staircase, each serving a specific purpose. The basic structure includes the following components:

Steps: The individual units that form the walking surface of the staircase.
Risers: The vertical part of each step.
Treads: The horizontal part of each step.
Stringers: The diagonal supports that run along the sides of the staircase.
Handrails: The horizontal or sloping rails that provide support and safety.
Balusters: The vertical supports that connect the handrail to the treads.
Newel Posts: The large, decorative posts that support the handrail at the top and bottom of the staircase.

Detailed Breakdown of the Parts of a Staircase

Each component of a staircase plays a vital role in its overall design and functionality. Let's delve into the details of each part:

Steps

The steps are the most fundamental parts of a staircase. They are composed of two main elements: the tread and the riser. The tread is the horizontal surface that you step on, while the riser is the vertical part that connects one tread to the next. The dimensions of the tread and riser are crucial for ensuring comfort and safety. Standard measurements often include a tread depth of about 10-11 inches and a riser height of 7-7.5 inches, but these can vary based on building codes and design preferences.

Stringers

Stringers are the structural supports that run along the sides of the staircase. They provide the framework that holds the steps in place. There are typically two stringers, one on each side, but some designs may include a center stringer for additional support. Stringers can be cut in various styles, such as closed stringers, which enclose the sides of the steps, or open stringers, which leave the sides exposed.

Handrails

Handrails are essential for safety and support. They run along the length of the staircase, providing a grip for users to hold onto while ascending or descending. Handrails are usually attached to the wall or supported by balusters. The height of the handrail is regulated by building codes to ensure it is accessible and safe for users of all ages and abilities.

Balusters

Balusters are the vertical supports that connect the handrail to the treads. They are often decorative and can be made from various materials, including wood, metal, or glass. Balusters not only add to the aesthetic appeal of the staircase but also provide additional safety by preventing falls through the open spaces between the treads.

Newel Posts

Newel posts are the large, decorative posts that support the handrail at the top and bottom of the staircase. They serve both functional and aesthetic purposes, providing stability and adding a finishing touch to the staircase design. Newel posts can be simple and functional or elaborately carved and ornate, depending on the overall style of the staircase.

Landing

A landing is a flat platform that interrupts the staircase, providing a resting point or a change in direction. Landings are particularly useful in multi-story buildings or in staircases that turn at a 90-degree angle. They can be located at any point along the staircase and are often used to create a more comfortable and safe ascent or descent.

Risers

Risers are the vertical parts of each step. They are crucial for the overall height of the staircase and can be designed to be open or closed. Open risers allow for a more modern and airy look, while closed risers provide a more traditional and solid appearance. The height of the risers is regulated by building codes to ensure safety and comfort.

Treads

Treads are the horizontal parts of each step. They are the surfaces that you step on as you ascend or descend the staircase. The depth of the treads is important for comfort and safety, as it affects the ease of stepping. Treads can be made from various materials, including wood, stone, or metal, and can be designed to be non-slip for added safety.

Nosing

The nosing is the front edge of the tread that overhangs the riser. It provides a visual and tactile cue for the edge of the step, helping to prevent slips and falls. The nosing can be rounded or square, depending on the design of the staircase. It is often highlighted with a contrasting color or material to make it more visible.

Guardrails

Guardrails are the barriers that run along the open sides of the staircase, providing protection against falls. They are typically made from the same material as the handrails and balusters and are designed to be sturdy and durable. Guardrails are essential for safety, especially in staircases with open landings or multiple levels.

Winder

A winder is a step that is narrower on one side than the other, allowing the staircase to turn at an angle. Winders are often used in spiral or curved staircases to create a smooth transition between levels. They can be more challenging to navigate than standard steps, so it's important to ensure they are designed with safety in mind.

Bullnose Step

A bullnose step is a step with a rounded or curved edge on the tread. It is often used at the bottom or top of a staircase to create a more finished and elegant look. Bullnose steps can be made from various materials, including wood, stone, or metal, and can be designed to match the overall style of the staircase.

Quarter Landing

A quarter landing is a small platform that interrupts the staircase, providing a resting point or a change in direction. It is typically used in staircases that turn at a 90-degree angle and is smaller than a full landing. Quarter landings can be designed to be functional and practical or decorative and stylish, depending on the overall design of the staircase.

Half Landing

A half landing is a platform that interrupts the staircase, providing a resting point or a change in direction. It is typically used in staircases that turn at a 180-degree angle and is larger than a quarter landing. Half landings can be designed to be functional and practical or decorative and stylish, depending on the overall design of the staircase.

Quarter Turn Staircase

A quarter turn staircase is a staircase that turns at a 90-degree angle. It typically includes a quarter landing or a winder to create the turn. Quarter turn staircases are often used in smaller spaces where a straight staircase would not fit. They can be designed to be functional and practical or decorative and stylish, depending on the overall design of the staircase.

Half Turn Staircase

A half turn staircase is a staircase that turns at a 180-degree angle. It typically includes a half landing or a series of winders to create the turn. Half turn staircases are often used in larger spaces where a straight staircase would not fit. They can be designed to be functional and practical or decorative and stylish, depending on the overall design of the staircase.

Spiral Staircase

A spiral staircase is a staircase that winds around a central pole or newel post. It is often used in smaller spaces where a straight or L-shaped staircase would not fit. Spiral staircases can be designed to be functional and practical or decorative and stylish, depending on the overall design of the staircase. They typically include winders to create the spiral effect.

L-Shaped Staircase

An L-shaped staircase is a staircase that turns at a 90-degree angle. It typically includes a landing or a series of winders to create the turn. L-shaped staircases are often used in larger spaces where a straight staircase would not fit. They can be designed to be functional and practical or decorative and stylish, depending on the overall design of the staircase.

U-Shaped Staircase

A U-shaped staircase is a staircase that turns at a 180-degree angle. It typically includes a landing or a series of winders to create the turn. U-shaped staircases are often used in larger spaces where a straight staircase would not fit. They can be designed to be functional and practical or decorative and stylish, depending on the overall design of the staircase.

Straight Staircase

A straight staircase is a staircase that runs in a straight line from one level to another. It is the simplest and most common type of staircase. Straight staircases can be designed to be functional and practical or decorative and stylish, depending on the overall design of the staircase. They typically include a series of steps with risers and treads.

Design Considerations for Staircases

When designing a staircase, several factors must be considered to ensure it is safe, functional, and aesthetically pleasing. These considerations include:

Space: The available space will determine the type and size of the staircase. For example, a spiral staircase may be more suitable for a smaller space, while a straight or L-shaped staircase may be better for a larger area.
Material: The choice of material will affect the durability, maintenance, and aesthetic appeal of the staircase. Common materials include wood, metal, stone, and concrete.
Style: The style of the staircase should complement the overall design of the building. Whether it's modern, traditional, or rustic, the staircase should blend seamlessly with its surroundings.
Safety: Safety is paramount when designing a staircase. This includes ensuring the steps are the correct size, the handrails are at the right height, and there are adequate guardrails to prevent falls.
Accessibility: For buildings that need to be accessible to people with disabilities, it's important to consider features such as wider treads, lower risers, and handrails on both sides.

Building Codes and Regulations

Building codes and regulations play a crucial role in the design and construction of staircases. These codes ensure that staircases are safe and accessible for all users. Some of the key regulations include:

Step Dimensions: The dimensions of the treads and risers must comply with local building codes. Typically, treads should be at least 10 inches deep, and risers should be no more than 7.5 inches high.
Handrail Height: Handrails must be installed at a height that is accessible to users of all ages and abilities. The standard height is between 34 and 38 inches above the nosing of the tread.
Guardrail Height: Guardrails must be installed at a height that prevents falls. The standard height is at least 36 inches above the landing or tread.
Baluster Spacing: Balusters must be spaced closely enough to prevent small children or pets from falling through. The maximum spacing is typically 4 inches.

It is essential to consult local building codes and regulations to ensure that the staircase meets all safety and accessibility requirements.

Maintenance and Safety Tips

Maintaining a staircase is crucial for ensuring its longevity and safety. Here are some tips for maintaining and ensuring the safety of your staircase:

Regular Inspections: Regularly inspect the staircase for any signs of wear and tear, such as loose steps, damaged handrails, or wobbly balusters. Address any issues promptly to prevent accidents.
Cleanliness: Keep the staircase clean and free of debris. Regularly sweep or vacuum the steps to remove dirt, dust, and other particles that could cause slips and falls.
Non-Slip Surfaces: Consider installing non-slip surfaces on the treads, especially in areas that are prone to moisture or spills. This can help prevent slips and falls.
Proper Lighting: Ensure that the staircase is well-lit, especially at night. Adequate lighting can help prevent accidents by making the steps and handrails more visible.
Child Safety: If you have young children, consider installing safety gates at the top and bottom of the staircase to prevent them from accessing the stairs unsupervised.

🔍 Note: Always follow local building codes and regulations when designing, constructing, or maintaining a staircase. Consulting with a professional can help ensure that your staircase is safe and compliant with all relevant standards.

Staircases are an essential part of any building, providing vertical access between different levels. Understanding the parts of a staircase and their functions is crucial for ensuring that staircases are safe, functional, and aesthetically pleasing. By considering factors such as space, material, style, safety, and accessibility, you can design a staircase that meets all your needs and complements the overall design of your building. Regular maintenance and adherence to building codes and regulations will help ensure that your staircase remains safe and durable for years to come.
