Understanding the fundamentals of IP address classes and ranges is crucial for anyone involved in network administration, cybersecurity, or IT infrastructure. IP addresses are the backbone of internet communication, enabling devices to identify and communicate with each other. This post delves into the intricacies of IP address classes and ranges, providing a comprehensive guide for both beginners and experienced professionals.
What are IP Addresses?
An IP address, short for Internet Protocol address, is a unique identifier assigned to each device connected to a network. It serves two primary purposes: identifying the host or network interface and providing the location of the device in the network. IP addresses are typically represented in decimal format, such as 192.168.1.1, and are divided into two main versions: IPv4 and IPv6.
IPv4 vs. IPv6
IPv4, the fourth version of the Internet Protocol, uses a 32-bit addressing scheme, allowing for approximately 4.3 billion unique addresses. However, with the exponential growth of internet-connected devices, IPv4 addresses are becoming scarce. IPv6, the sixth version, uses a 128-bit addressing scheme, providing a vastly larger address space and ensuring that the internet can continue to grow.

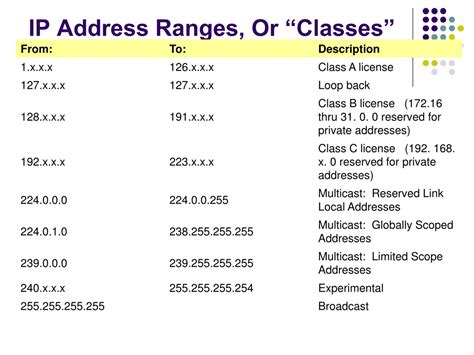

IP Address Classes and Ranges
IPv4 addresses are divided into five classes, each serving a different purpose and having a specific range of addresses. Understanding these classes and their ranges is essential for efficient network management.
Class A IP Addresses
Class A IP addresses range from 1.0.0.0 to 126.0.0.0. These addresses are designed for large networks and have a default subnet mask of 255.0.0.0. The first octet (the first set of numbers) determines the network, while the remaining three octets identify the host within that network. Class A addresses are ideal for large organizations with extensive networks.
Class B IP Addresses
Class B IP addresses range from 128.0.0.0 to 191.255.0.0. These addresses are suitable for medium to large networks and have a default subnet mask of 255.255.0.0. The first two octets identify the network, and the last two octets identify the host. Class B addresses are commonly used by medium-sized businesses and educational institutions.
Class C IP Addresses
Class C IP addresses range from 192.0.0.0 to 223.255.255.0. These addresses are designed for small networks and have a default subnet mask of 255.255.255.0. The first three octets identify the network, and the last octet identifies the host. Class C addresses are ideal for small businesses, home networks, and other small-scale applications.
Class D IP Addresses
Class D IP addresses range from 224.0.0.0 to 239.255.255.255. These addresses are reserved for multicast groups, which are used for one-to-many communication. Multicast addresses allow a single packet to be sent to multiple destinations simultaneously, making them efficient for applications like video conferencing and online gaming.
Class E IP Addresses
Class E IP addresses range from 240.0.0.0 to 255.255.255.255. These addresses are reserved for experimental purposes and are not used for public routing. Class E addresses are typically used for research and development in networking technologies.
Special IP Address Ranges
In addition to the standard IP address classes, there are several special IP address ranges that serve specific purposes. These ranges are reserved for private networks, loopback addresses, and other special uses.
Private IP Address Ranges
Private IP addresses are used within local networks and are not routable on the public internet. These addresses are defined by the following ranges:
| Class | IP Address Range | Subnet Mask |
|---|---|---|
| Class A | 10.0.0.0 to 10.255.255.255 | 255.0.0.0 |
| Class B | 172.16.0.0 to 172.31.255.255 | 255.240.0.0 |
| Class C | 192.168.0.0 to 192.168.255.255 | 255.255.0.0 |
These private IP address ranges are commonly used in home networks, small businesses, and corporate intranets. Devices within these networks can communicate with each other, but they require Network Address Translation (NAT) to access the internet.
Loopback IP Address
The loopback IP address, 127.0.0.1, is used for testing and diagnostic purposes. It allows a device to send packets to itself, enabling network administrators to test network configurations and troubleshoot issues without requiring an external network connection.
Reserved IP Addresses
Certain IP addresses are reserved for specific purposes and should not be used for general network communication. These include:
- 0.0.0.0: Used to indicate the default route or an unspecified address.
- 255.255.255.255: Used as a broadcast address to send packets to all devices on a network.
- 169.254.0.0 to 169.254.255.255: Used for link-local addresses, which are automatically assigned when a device cannot obtain an IP address from a DHCP server.
Subnetting and IP Address Classes
Subnetting is the process of dividing a network into smaller, more manageable subnetworks. This technique allows for more efficient use of IP address space and improves network performance. Subnetting involves modifying the subnet mask to create additional network bits, which can be used to define subnetworks within a larger network.
For example, consider a Class C IP address with a default subnet mask of 255.255.255.0. By changing the subnet mask to 255.255.255.128, the network can be divided into two subnetworks, each with 126 usable IP addresses. This process can be repeated to create even smaller subnetworks, depending on the network's requirements.
💡 Note: Subnetting can be complex, and it is essential to understand the principles of binary mathematics and IP addressing to perform it correctly.
IP Address Classes and Network Security
Understanding IP address classes and ranges is crucial for network security. By properly configuring IP addresses and subnet masks, network administrators can control access to network resources and protect against unauthorized access. Additionally, using private IP address ranges and NAT can enhance security by hiding internal network addresses from the public internet.
Network security measures such as firewalls, intrusion detection systems, and access control lists (ACLs) often rely on IP address classes and ranges to filter traffic and enforce security policies. For example, a firewall can be configured to allow traffic from specific IP address ranges while blocking traffic from others, providing an additional layer of protection against cyber threats.
IP Address Classes and Network Management
Efficient network management requires a thorough understanding of IP address classes and ranges. Network administrators must allocate IP addresses appropriately, ensuring that each device on the network has a unique address and that the network is organized logically. This involves:
- Planning the network topology and determining the appropriate IP address class for the network.
- Configuring subnet masks to create subnetworks and optimize IP address usage.
- Implementing DHCP (Dynamic Host Configuration Protocol) to automatically assign IP addresses to devices.
- Monitoring network traffic and performance to identify and resolve issues.
By following best practices for IP address management, network administrators can ensure that their networks are reliable, secure, and efficient.
IP address classes and ranges are fundamental concepts in networking that play a crucial role in network design, security, and management. Understanding these concepts is essential for anyone involved in IT infrastructure, whether they are network administrators, cybersecurity professionals, or IT support specialists. By mastering IP address classes and ranges, professionals can build robust, secure, and efficient networks that meet the demands of modern communication and data exchange.
