The Hazen-Williams equation is a widely used empirical formula in hydraulic engineering for calculating the flow of water in pipes. Developed by Allen Hazen and Gardner Stewart Williams in the early 20th century, this equation provides a straightforward method to determine the flow rate based on the pipe's diameter, length, and roughness, as well as the pressure drop or head loss. Its simplicity and reliability make it a staple in the design and analysis of water distribution systems.
Understanding the Hazen-Williams Equation

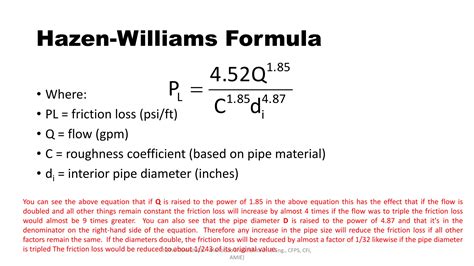

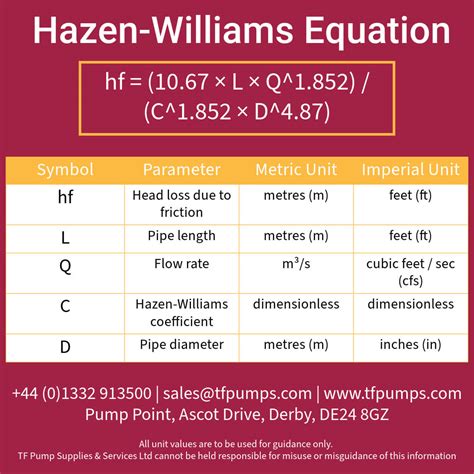

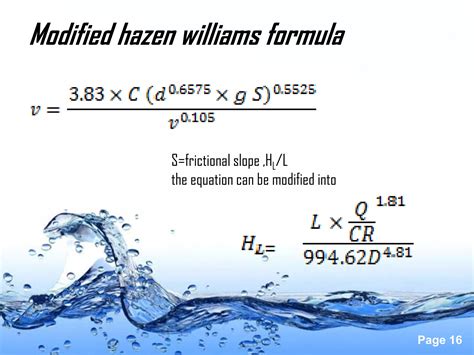

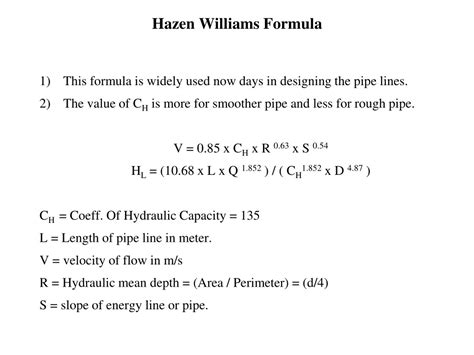

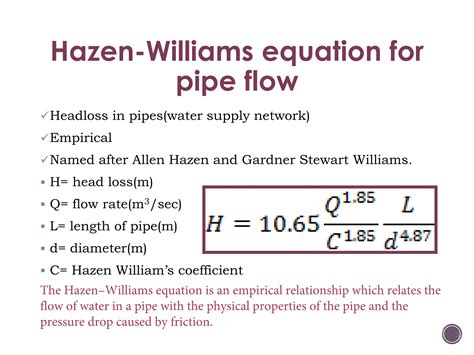

The Hazen-Williams equation is expressed as:
Q = 0.285 * C * d2.63 * (hL/L)0.54
Where:
- Q is the flow rate (in cubic feet per second, cfs).
- C is the Hazen-Williams coefficient, which depends on the pipe material and age.
- d is the internal diameter of the pipe (in feet).
- hL is the head loss due to friction (in feet).
- L is the length of the pipe (in feet).
The Hazen-Williams coefficient C is a crucial parameter that accounts for the roughness of the pipe material. Different materials have different C values, which can change over time due to corrosion or scaling. For example, new cast iron pipes typically have a C value around 130, while older pipes may have a lower value due to increased roughness.
Applications of the Hazen-Williams Equation
The Hazen-Williams equation is extensively used in various applications within hydraulic engineering:
- Water Distribution Systems: It is commonly used to design and analyze water supply networks, ensuring adequate water pressure and flow rates to meet demand.
- Fire Protection Systems: In designing fire sprinkler systems, the Hazen-Williams equation helps ensure that sufficient water flow is available to extinguish fires effectively.
- Irrigation Systems: For agricultural irrigation, the equation aids in designing efficient water delivery systems to crops.
- Industrial Piping: In industrial settings, it is used to design piping systems for various fluids, ensuring optimal flow and pressure conditions.
Calculating Flow Rate with the Hazen-Williams Equation
To calculate the flow rate using the Hazen-Williams equation, follow these steps:
- Determine the Pipe Diameter: Measure the internal diameter of the pipe in feet.
- Identify the Pipe Length: Measure the length of the pipe in feet.
- Estimate the Head Loss: Calculate or estimate the head loss due to friction over the length of the pipe.
- Select the Hazen-Williams Coefficient: Choose the appropriate C value based on the pipe material and its condition.
- Apply the Hazen-Williams Equation: Substitute the values into the equation to calculate the flow rate.
For example, consider a pipe with the following characteristics:
- Diameter (d): 1 foot
- Length (L): 1000 feet
- Head Loss (hL): 50 feet
- Hazen-Williams Coefficient (C): 100
Substituting these values into the Hazen-Williams equation:
Q = 0.285 * 100 * 12.63 * (50/1000)0.54
Calculating the flow rate:
Q = 0.285 * 100 * 1 * (0.05)0.54
Q = 28.5 * 0.229
Q ≈ 6.53 cfs
💡 Note: Ensure that all units are consistent when using the Hazen-Williams equation. The equation assumes that the flow rate is in cubic feet per second, the diameter and length are in feet, and the head loss is in feet.
Factors Affecting the Hazen-Williams Coefficient
The Hazen-Williams coefficient C is influenced by several factors, including:
- Pipe Material: Different materials have inherent roughness characteristics that affect the flow. For example, PVC pipes have a higher C value than cast iron pipes.
- Pipe Age: Over time, pipes can become rougher due to corrosion, scaling, or biofilm buildup, which reduces the C value.
- Pipe Condition: The overall condition of the pipe, including any damage or wear, can affect the C value.
- Flow Characteristics: The nature of the fluid flowing through the pipe, such as viscosity and temperature, can also influence the C value.
Here is a table of typical Hazen-Williams coefficients for various pipe materials:
| Pipe Material | Hazen-Williams Coefficient (C) |
|---|---|
| PVC | 150 |
| New Cast Iron | 130 |
| Old Cast Iron | 100 |
| Concrete | 140 |
| Galvanized Iron | 120 |
| Steel | 140 |
Limitations of the Hazen-Williams Equation
While the Hazen-Williams equation is widely used, it has several limitations:
- Empirical Nature: The equation is based on empirical data and may not be accurate for all flow conditions, especially at very high or very low flow rates.
- Temperature Dependence: The equation does not account for the temperature of the fluid, which can affect viscosity and flow characteristics.
- Pipe Roughness: The Hazen-Williams coefficient C is an approximation and may not accurately represent the roughness of all pipe materials.
- Flow Regime: The equation is primarily valid for turbulent flow and may not be accurate for laminar flow conditions.
Despite these limitations, the Hazen-Williams equation remains a valuable tool in hydraulic engineering due to its simplicity and reliability for many practical applications.
Comparing the Hazen-Williams Equation with Other Flow Equations
The Hazen-Williams equation is one of several empirical formulas used to calculate flow in pipes. Other commonly used equations include the Darcy-Weisbach equation and the Manning equation. Each has its own advantages and limitations:
- Darcy-Weisbach Equation: This equation is more theoretically based and accounts for both laminar and turbulent flow. It is expressed as:
hL = f * (L/d) * (V2/2g)
- Manning Equation: This equation is often used in open-channel flow and is expressed as:
V = (1/n) * R2/3 * S1/2
Where:
- V is the flow velocity.
- n is the Manning roughness coefficient.
- R is the hydraulic radius.
- S is the slope of the energy grade line.
The choice between these equations depends on the specific application and the available data. The Hazen-Williams equation is often preferred for its simplicity and ease of use in water distribution systems.
💡 Note: The Darcy-Weisbach equation is more versatile but requires knowledge of the friction factor, which can be complex to determine. The Manning equation is useful for open-channel flow but may not be as accurate for pressurized pipe flow.
In summary, the Hazen-Williams equation is a fundamental tool in hydraulic engineering, providing a straightforward method to calculate flow rates in pipes. Its simplicity and reliability make it a staple in the design and analysis of water distribution systems. Understanding its applications, limitations, and comparisons with other flow equations is essential for effective use in various engineering contexts.
