Gunn Diode Iv Characteristics

Gunn diodes are a type of semiconductor device that exhibits unique electrical properties, making them valuable in various high-frequency applications. Understanding the Gunn Diode IV Characteristics is crucial for engineers and researchers working with these devices. This post delves into the fundamentals of Gunn diodes, their IV characteristics, and their applications in modern technology.

Table of Contents

What is a Gunn Diode?

A Gunn diode, also known as a transferred electron device (TED), is a type of diode that exhibits a negative differential resistance region in its current-voltage (IV) characteristics. This unique property makes it suitable for high-frequency oscillators and amplifiers. The diode was named after its inventor, J.B. Gunn, who discovered the effect in 1963.

Basic Structure and Operation

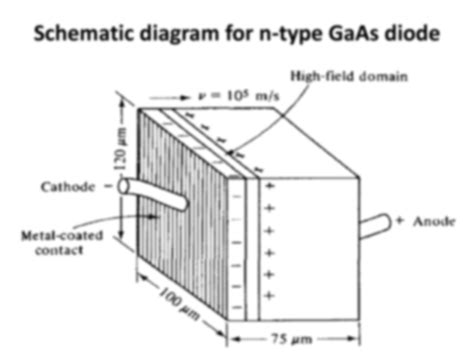

The basic structure of a Gunn diode consists of a thin layer of n-type semiconductor material, typically gallium arsenide (GaAs), sandwiched between two ohmic contacts. When a voltage is applied across the diode, electrons in the semiconductor material gain energy and move through the crystal lattice. Under certain conditions, these electrons can transfer to a higher energy state, leading to a decrease in their mobility and a corresponding decrease in current. This phenomenon is known as the Gunn effect and is responsible for the negative differential resistance observed in the IV characteristics.

Gunn Diode IV Characteristics

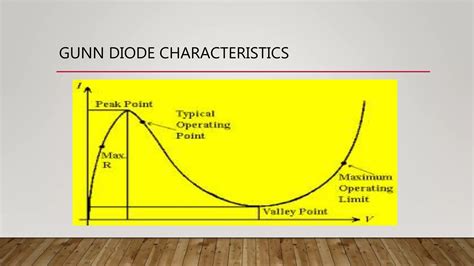

The Gunn Diode IV Characteristics are essential for understanding the device’s behavior and optimizing its performance in various applications. The IV curve of a Gunn diode typically exhibits three distinct regions:

Ohmic Region: At low voltages, the current increases linearly with voltage, similar to a typical resistor.
Negative Differential Resistance Region: As the voltage increases, the current reaches a peak and then decreases, forming a region of negative differential resistance. This region is crucial for high-frequency oscillations.
Saturation Region: At higher voltages, the current increases again but at a slower rate, eventually saturating.

The IV characteristics of a Gunn diode can be influenced by various factors, including the material properties, doping levels, and device geometry. Understanding these factors is essential for designing Gunn diodes with specific performance characteristics.

Applications of Gunn Diodes

Gunn diodes are widely used in high-frequency applications due to their unique IV characteristics. Some of the key applications include:

Oscillators: Gunn diodes are commonly used in microwave oscillators for generating stable, high-frequency signals. These oscillators are essential in communication systems, radar, and other high-frequency applications.
Amplifiers: The negative differential resistance region in the IV characteristics of Gunn diodes makes them suitable for use in high-frequency amplifiers. These amplifiers are used in various applications, including satellite communications and microwave links.
Frequency Multipliers: Gunn diodes can also be used as frequency multipliers, converting a lower-frequency signal into a higher-frequency signal. This is useful in applications where high-frequency signals are required but generating them directly is challenging.

Design Considerations for Gunn Diodes

Designing Gunn diodes for specific applications requires careful consideration of various factors. Some of the key design considerations include:

Material Selection: The choice of semiconductor material is crucial for determining the performance of a Gunn diode. Gallium arsenide (GaAs) is commonly used due to its favorable electron transport properties.
Doping Levels: The doping concentration in the semiconductor material affects the IV characteristics of the Gunn diode. Optimizing the doping levels is essential for achieving the desired performance.
Device Geometry: The dimensions of the Gunn diode, including the thickness of the active layer and the contact areas, play a significant role in determining its electrical properties. Careful design of the device geometry is necessary to achieve the desired performance.

Characterizing Gunn Diode IV Characteristics

Characterizing the Gunn Diode IV Characteristics involves measuring the current-voltage relationship under various conditions. This process typically includes the following steps:

Setup the Measurement System: Use a high-precision measurement system capable of applying a controlled voltage and measuring the resulting current. This system should include a stable power supply, a sensitive current meter, and appropriate connections to the Gunn diode.
Apply Voltage Sweep: Gradually increase the voltage applied to the Gunn diode and record the corresponding current. Ensure that the voltage sweep covers the entire range of interest, including the negative differential resistance region.
Analyze the Data: Plot the measured current-voltage data to visualize the IV characteristics. Identify the key regions, including the ohmic region, negative differential resistance region, and saturation region.

🔍 Note: Ensure that the measurement system is calibrated and that the connections to the Gunn diode are secure to obtain accurate and reliable results.

Factors Affecting Gunn Diode IV Characteristics

Several factors can influence the Gunn Diode IV Characteristics, including:

Temperature: The temperature of the Gunn diode can affect its IV characteristics. Higher temperatures can lead to increased thermal noise and reduced performance.
Bias Voltage: The bias voltage applied to the Gunn diode can significantly impact its IV characteristics. Optimizing the bias voltage is essential for achieving the desired performance.
Frequency: The operating frequency of the Gunn diode can also affect its IV characteristics. Higher frequencies can lead to increased losses and reduced efficiency.

Optimizing Gunn Diode Performance

Optimizing the performance of Gunn diodes involves careful consideration of various factors. Some key strategies for optimizing performance include:

Material Optimization: Selecting the appropriate semiconductor material and optimizing its properties can enhance the performance of Gunn diodes. For example, using high-purity GaAs can improve electron mobility and reduce losses.
Doping Optimization: Optimizing the doping levels in the semiconductor material can improve the IV characteristics of the Gunn diode. This involves balancing the trade-off between conductivity and negative differential resistance.
Device Geometry Optimization: Designing the device geometry to minimize losses and maximize efficiency is crucial for optimizing Gunn diode performance. This includes optimizing the thickness of the active layer and the contact areas.

Future Trends in Gunn Diode Technology

The field of Gunn diode technology is continually evolving, driven by advancements in materials science and semiconductor manufacturing. Some of the future trends in Gunn diode technology include:

New Materials: Research is ongoing to develop new semiconductor materials with improved electron transport properties. These materials could lead to more efficient and high-performance Gunn diodes.
Advanced Fabrication Techniques: Advances in semiconductor fabrication techniques, such as nanofabrication and 3D printing, could enable the creation of more complex and efficient Gunn diode structures.
Integration with Other Technologies: Integrating Gunn diodes with other technologies, such as microelectromechanical systems (MEMS) and photonic devices, could open up new applications and enhance performance.

In conclusion, understanding the Gunn Diode IV Characteristics is essential for engineers and researchers working with these devices. By optimizing the design and operating conditions, Gunn diodes can be used in a wide range of high-frequency applications, from oscillators and amplifiers to frequency multipliers. As technology continues to advance, the future of Gunn diode technology looks promising, with new materials and fabrication techniques paving the way for even more efficient and high-performance devices.
