Globe Valve Valves

Globe valves are essential components in various industrial and commercial applications, playing a crucial role in controlling the flow of liquids and gases. These valves are designed to regulate flow through a linear motion of the disk perpendicular to the seat, providing precise control over the flow rate. Understanding the types, applications, and maintenance of globe valves is vital for ensuring efficient and safe operations in industries such as oil and gas, chemical processing, and water treatment.

Table of Contents

Understanding Globe Valve Valves

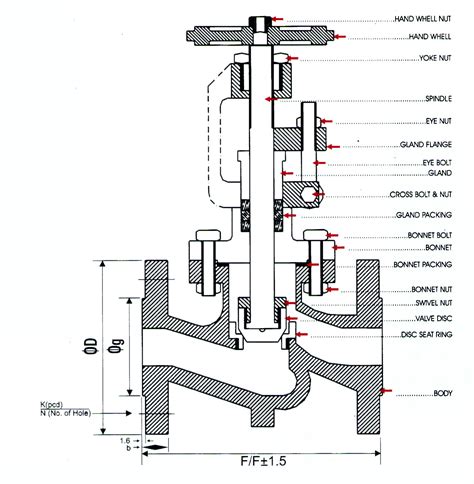

Globe valves are named for their spherical body shape, which houses the internal mechanism that controls the flow. The key components of a globe valve include the body, bonnet, disk, stem, and seat. The body provides the main structure and contains the flow path, while the bonnet covers the body and holds the internal components in place. The disk, attached to the stem, moves up and down to open or close the valve, and the seat provides a sealing surface to prevent leakage.

Types of Globe Valve Valves

Globe valves come in various types, each designed for specific applications and flow control requirements. The main types of globe valves include:

Z-body Globe Valves: These valves have a straight flow path and are suitable for applications where minimal pressure drop is required.
Y-body Globe Valves: These valves have an angled flow path, which reduces the pressure drop and turbulence, making them ideal for high-pressure applications.
Angle Globe Valves: These valves have a 90-degree turn in the flow path, which helps in reducing the pressure drop and is suitable for applications where space is limited.
Three-way Globe Valves: These valves have three ports and are used for mixing or diverting flows. They are commonly used in heating, ventilation, and air conditioning (HVAC) systems.

Applications of Globe Valve Valves

Globe valves are used in a wide range of industries due to their precise flow control capabilities. Some of the key applications include:

Oil and Gas Industry: Globe valves are used in pipelines, refineries, and processing plants to control the flow of crude oil, natural gas, and other hydrocarbons.
Chemical Processing: These valves are essential in chemical plants for controlling the flow of corrosive and hazardous chemicals, ensuring safe and efficient operations.
Water Treatment: Globe valves are used in water treatment facilities to regulate the flow of water and chemicals, maintaining water quality and treatment processes.
Power Generation: In power plants, globe valves control the flow of steam, water, and other fluids, ensuring efficient operation of boilers, turbines, and other equipment.
Food and Beverage Industry: Globe valves are used in food and beverage processing to control the flow of ingredients, ensuring hygiene and product quality.

Advantages of Globe Valve Valves

Globe valves offer several advantages that make them a preferred choice for many applications:

Precise Flow Control: Globe valves provide precise and accurate control over the flow rate, making them ideal for applications requiring fine-tuned regulation.
Versatility: These valves can handle a wide range of fluids, including liquids, gases, and slurries, making them suitable for various industries.
Durability: Globe valves are designed to withstand high pressures and temperatures, ensuring long-term reliability and performance.
Easy Maintenance: The simple design of globe valves makes them easy to maintain and repair, reducing downtime and maintenance costs.

Maintenance of Globe Valve Valves

Maintaining globe valves is crucial for ensuring their longevity and optimal performance. Regular maintenance includes:

Inspection: Regularly inspect the valve for signs of wear, corrosion, or damage. Check the seat, disk, and stem for any issues.
Lubrication: Lubricate the stem and other moving parts to ensure smooth operation and prevent seizure.
Cleaning: Clean the valve to remove any debris or buildup that could affect its performance.
Replacement of Parts: Replace worn-out or damaged parts, such as the seat, disk, or stem, to maintain the valve's functionality.

🔧 Note: Always follow the manufacturer's guidelines for maintenance and use only approved parts and lubricants.

Selection Criteria for Globe Valve Valves

Selecting the right globe valve for a specific application involves considering several factors:

Flow Rate and Pressure: Determine the required flow rate and pressure to ensure the valve can handle the application's demands.
Material Compatibility: Choose a valve material that is compatible with the fluid being controlled to prevent corrosion and ensure longevity.
Temperature Range: Select a valve that can operate within the required temperature range to avoid failure or reduced performance.
Size and Configuration: Consider the size and configuration of the valve to ensure it fits within the available space and meets the application's requirements.

Common Issues with Globe Valve Valves

Despite their reliability, globe valves can encounter issues that affect their performance. Some common problems include:

Leakage: Leakage can occur due to worn-out seats, damaged disks, or improper installation. Regular inspection and maintenance can prevent leakage.
Stem Seizure: The stem can seize due to lack of lubrication or corrosion, preventing the valve from opening or closing. Regular lubrication and inspection can prevent this issue.
Erosion and Corrosion: Erosion and corrosion can damage the valve's internal components, reducing its lifespan. Choosing the right material and regular maintenance can mitigate these issues.

🛠️ Note: Addressing these issues promptly can prevent more significant problems and extend the valve's lifespan.

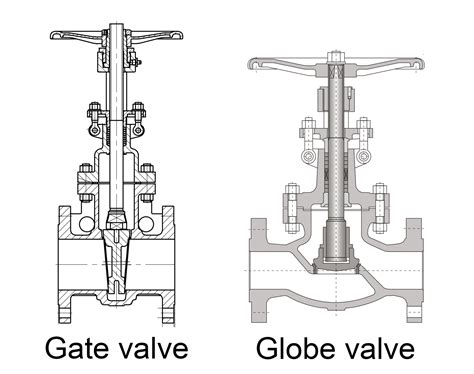

Comparison with Other Valve Types

While globe valves are versatile and reliable, other valve types may be more suitable for specific applications. Here is a comparison of globe valves with other common valve types:

Valve Type	Advantages	Disadvantages
Ball Valves	Quick opening and closing, low pressure drop, easy to operate	Less precise flow control, not suitable for throttling
Butterfly Valves	Compact design, low cost, easy to operate	Less precise flow control, higher pressure drop
Gate Valves	Full bore flow, low pressure drop, suitable for on/off service	Not suitable for throttling, slower operation
Globe Valves	Precise flow control, versatile, durable	Higher pressure drop, slower operation

Each valve type has its strengths and weaknesses, and the choice depends on the specific requirements of the application.

Future Trends in Globe Valve Valves

The future of globe valves is shaped by advancements in technology and materials. Some emerging trends include:

Smart Valves: Integration of sensors and IoT technology to monitor valve performance, detect issues, and optimize operations.
Advanced Materials: Use of high-performance materials to enhance durability, corrosion resistance, and temperature tolerance.
Automation: Implementation of automated control systems to improve efficiency, reduce manual intervention, and enhance safety.
Sustainability: Development of eco-friendly materials and designs to reduce environmental impact and promote sustainability.

These trends are driving innovation in the valve industry, making globe valves more efficient, reliable, and sustainable.

Globe valves are indispensable in various industries, offering precise flow control and reliability. Understanding their types, applications, and maintenance requirements is essential for ensuring optimal performance and longevity. By staying informed about the latest trends and advancements, industries can leverage the full potential of globe valves to enhance their operations and achieve their goals.
