Diy Wind Turbine

Harnessing the power of wind is an age-old practice that has seen a resurgence in recent years due to the growing demand for renewable energy sources. Building a DIY wind turbine can be a rewarding project that not only helps you understand the principles of wind energy but also allows you to contribute to a sustainable future. This guide will walk you through the process of creating your own DIY wind turbine, from understanding the basics to assembling the final product.

Table of Contents

Understanding Wind Energy

Wind energy is a clean and renewable source of power that converts the kinetic energy from the wind into electrical energy. The basic components of a wind turbine include the blades, the rotor, the generator, and the tower. The blades capture the wind’s energy and rotate the rotor, which in turn drives the generator to produce electricity.

Benefits of a DIY Wind Turbine

Building your own DIY wind turbine offers several advantages:

Cost-effective: DIY wind turbines can be significantly cheaper than commercially available ones.
Customizable: You can tailor the design to meet your specific energy needs and environmental conditions.
Educational: The process of building a wind turbine provides a hands-on learning experience about renewable energy.
Sustainable: By generating your own clean energy, you reduce your carbon footprint and dependence on fossil fuels.

Materials and Tools Needed

Before you start, gather the necessary materials and tools. The list below outlines the essential components for a basic DIY wind turbine:

Blades: Typically made from lightweight materials like wood, plastic, or metal.
Rotor: The central part that connects the blades to the generator.
Generator: Converts mechanical energy into electrical energy.
Tower: Supports the turbine and elevates it to capture stronger winds.
Controller: Regulates the voltage and current output.
Batteries: Store the generated electricity for later use.
Tools: Screwdriver, drill, saw, wrenches, and measuring tape.

Designing Your DIY Wind Turbine

Designing your DIY wind turbine involves several key considerations:

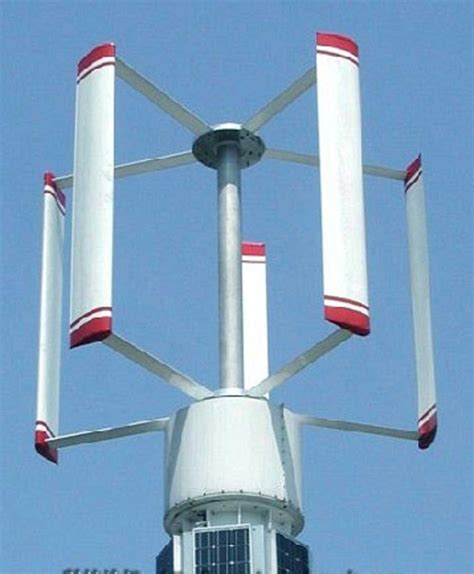

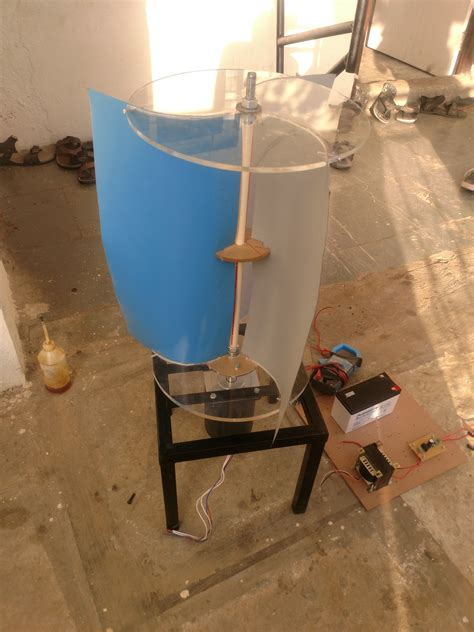

Blade Design: The shape and size of the blades affect the turbine’s efficiency. Common designs include horizontal-axis and vertical-axis turbines.
Rotor Size: The rotor’s diameter determines the amount of wind energy captured. Larger rotors can generate more power but may require stronger materials and a more robust tower.
Generator Type: Permanent magnet generators are popular for DIY projects due to their simplicity and efficiency.
Tower Height: The tower should be tall enough to capture consistent wind speeds but stable enough to withstand strong winds.

Building the Blades

The blades are crucial for capturing wind energy efficiently. Here are the steps to build your own blades:

Choose a lightweight and durable material, such as plywood or fiberglass.
Design the blade shape using aerodynamic principles. A common design is the airfoil shape, which minimizes drag and maximizes lift.
Cut the blades to the desired shape using a saw or jigsaw.
Sand the edges and surfaces to ensure a smooth finish.
Attach the blades to the rotor using bolts or screws.

🛠️ Note: Ensure the blades are balanced to prevent vibrations and reduce wear on the rotor and generator.

Assembling the Rotor

The rotor connects the blades to the generator. Follow these steps to assemble the rotor:

Select a sturdy material for the rotor hub, such as metal or high-density plastic.
Drill holes in the hub to match the blade attachment points.
Attach the blades to the hub using bolts or screws.
Ensure the blades are securely fastened and balanced.

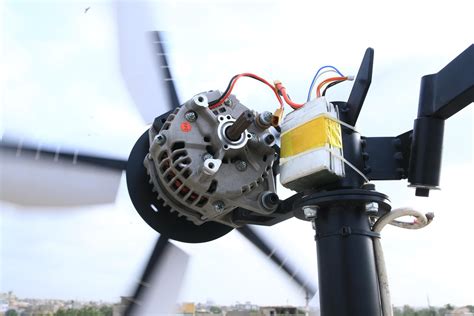

Choosing and Installing the Generator

The generator converts the mechanical energy from the rotor into electrical energy. Here are the steps to choose and install the generator:

Select a permanent magnet generator suitable for your turbine’s size and power requirements.
Mount the generator on a stable base or platform.
Connect the rotor to the generator shaft using a coupling or direct mount.
Ensure the generator is securely fastened and aligned with the rotor.

Constructing the Tower

The tower supports the turbine and elevates it to capture stronger winds. Follow these steps to construct the tower:

Choose a sturdy material for the tower, such as metal or reinforced concrete.
Design the tower to be tall enough to capture consistent wind speeds but stable enough to withstand strong winds.
Assemble the tower sections and secure them with bolts or welds.

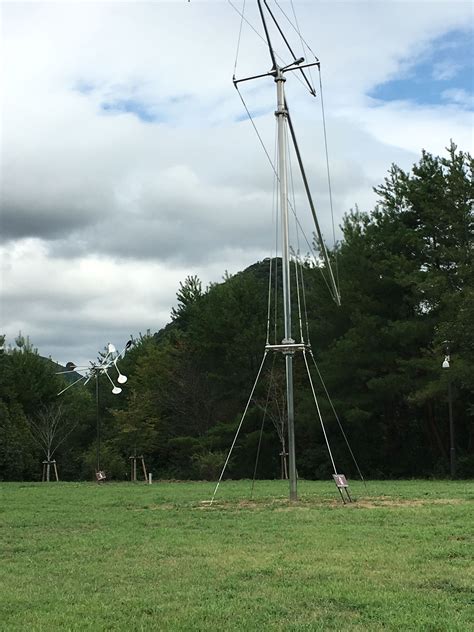

Install guy wires or braces to provide additional stability.
Mount the turbine on the top of the tower using a secure base or platform.

Installing the Controller and Batteries

The controller regulates the voltage and current output, while the batteries store the generated electricity. Here are the steps to install the controller and batteries:

Choose a controller suitable for your turbine’s power output and battery type.
Mount the controller in a protected location near the turbine.
Connect the generator to the controller using appropriate wiring.
Select batteries with sufficient capacity to store the generated electricity. Common choices include lead-acid, gel, or lithium-ion batteries.
Connect the batteries to the controller and ensure all connections are secure.

Testing and Optimizing Your DIY Wind Turbine

Once your DIY wind turbine is assembled, it’s time to test and optimize its performance. Follow these steps:

Place the turbine in an open area with consistent wind speeds.
Monitor the turbine’s performance using a multimeter or voltage meter.
Adjust the blade pitch and rotor alignment to maximize efficiency.
Check for any vibrations or unusual noises that may indicate imbalance or misalignment.
Regularly inspect the turbine for wear and tear, and perform maintenance as needed.

Safety Considerations

Building and operating a DIY wind turbine involves several safety considerations:

Wear appropriate safety gear, including gloves, goggles, and ear protection.
Ensure the turbine is securely fastened to the tower and grounded to prevent electrical hazards.
Avoid working on the turbine during strong winds or adverse weather conditions.
Regularly inspect the turbine for signs of wear or damage.

Maintenance Tips

Regular maintenance is essential to keep your DIY wind turbine operating efficiently. Here are some maintenance tips:

Inspect the blades for cracks, chips, or other damage.
Check the rotor and generator for signs of wear or misalignment.
Clean the blades and rotor to remove dirt and debris.
Test the controller and batteries to ensure they are functioning properly.
Lubricate moving parts as needed to reduce friction and wear.

🛠️ Note: Regular maintenance can extend the lifespan of your DIY wind turbine and ensure it operates at peak efficiency.

Common Challenges and Solutions

Building a DIY wind turbine can present several challenges. Here are some common issues and their solutions:

Challenge	Solution
Blade Imbalance	Ensure the blades are evenly weighted and balanced. Use a balancing tool or method to achieve this.
Generator Overheating	Install a cooling system or ensure proper ventilation around the generator.
Tower Instability	Use guy wires or braces to provide additional support and stability to the tower.
Electrical Issues	Check all wiring connections and ensure the controller and batteries are functioning properly.

Building a DIY wind turbine is a rewarding project that can provide clean, renewable energy for your home or business. By following the steps outlined in this guide, you can create an efficient and reliable wind turbine tailored to your specific needs. Regular maintenance and optimization will ensure your turbine operates at peak performance, contributing to a sustainable future.
