Understanding the intricacies of electrical wiring is crucial for anyone involved in DIY projects, home improvements, or professional electrical work. One of the most fundamental aspects of electrical wiring is selecting the appropriate wire gauge for your specific needs. This is particularly important when dealing with 12V systems, which are commonly used in automotive, marine, and renewable energy applications. A 12V Wire Gauge Chart is an essential tool that helps you determine the correct wire size based on the current requirements of your circuit. This guide will walk you through the importance of wire gauges, how to read a 12V Wire Gauge Chart, and practical tips for selecting the right wire for your 12V system.
Understanding Wire Gauge
Wire gauge refers to the diameter of the wire, which directly affects its current-carrying capacity. The American Wire Gauge (AWG) system is the standard used in the United States to denote wire sizes. The gauge number decreases as the wire diameter increases. For example, a 10 AWG wire is thicker and can carry more current than a 14 AWG wire.
The Importance of Correct Wire Gauge
Selecting the correct wire gauge is vital for several reasons:
- Safety: Using a wire that is too small for the current it needs to carry can cause overheating, which may lead to fires or electrical shorts.
- Efficiency: Properly sized wires ensure that your electrical system operates efficiently, minimizing voltage drop and power loss.
- Longevity: Correct wire gauges extend the lifespan of your electrical components by preventing overheating and other forms of damage.
Reading a 12V Wire Gauge Chart

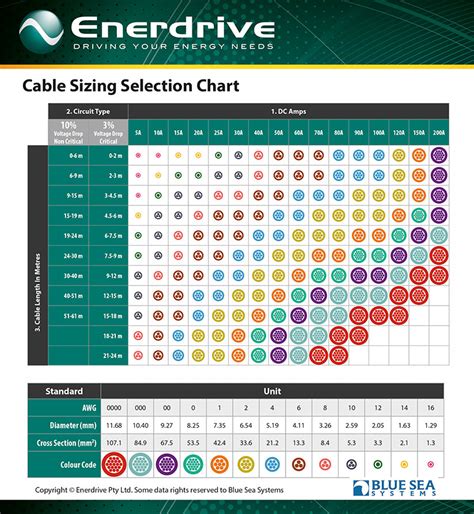

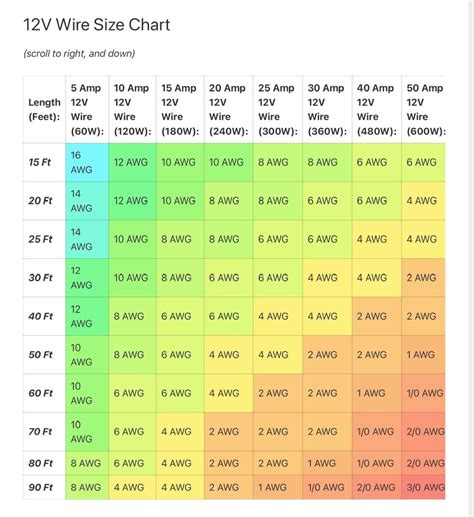

A 12V Wire Gauge Chart provides a quick reference for selecting the appropriate wire size based on the current requirements of your circuit. The chart typically includes columns for wire gauge, current capacity, and voltage drop. Here’s a breakdown of how to read and use a 12V Wire Gauge Chart:
| Wire Gauge (AWG) | Current Capacity (Amps) | Voltage Drop (Volts per 100 feet) |
|---|---|---|
| 10 | 30 | 0.25 |
| 12 | 20 | 0.35 |
| 14 | 15 | 0.50 |
| 16 | 10 | 0.75 |
| 18 | 8 | 1.00 |
To use the chart, follow these steps:
- Determine the current requirements of your circuit. This information is usually provided in the specifications of the devices you are connecting.
- Identify the maximum allowable voltage drop for your application. A common guideline is to keep the voltage drop below 3% of the total voltage.
- Select a wire gauge that can handle the current without exceeding the maximum allowable voltage drop.
🔍 Note: Always round up to the next higher wire gauge if your current requirements fall between two gauge sizes. This ensures a safety margin and prevents potential issues.
Practical Tips for Selecting Wire Gauge
Here are some practical tips to help you select the right wire gauge for your 12V system:
- Consider the Length of the Wire Run: Longer wire runs require thicker wires to minimize voltage drop. Use the 12V Wire Gauge Chart to calculate the appropriate gauge for your specific wire length.
- Account for Future Expansions: If you plan to add more devices to your circuit in the future, choose a wire gauge that can handle the increased current requirements.
- Use High-Quality Wire: Invest in high-quality wire that is designed for your specific application. This ensures better performance and longevity.
- Check Local Regulations: Some areas have specific regulations regarding wire gauges and electrical installations. Make sure to comply with local codes and standards.
Common Applications of 12V Systems
12V systems are widely used in various applications, including:
- Automotive: Car batteries, lighting, and accessories.
- Marine: Boat lighting, navigation systems, and engine starting.
- Renewable Energy: Solar panels, wind turbines, and battery banks.
- Home Automation: Low-voltage lighting, security systems, and smart home devices.
In each of these applications, selecting the correct wire gauge is crucial for ensuring safe and efficient operation. A 12V Wire Gauge Chart is an invaluable tool for making informed decisions about wire sizing.
Conclusion
Selecting the appropriate wire gauge for your 12V system is a critical step in ensuring safety, efficiency, and longevity. A 12V Wire Gauge Chart provides a straightforward way to determine the correct wire size based on your current requirements and wire length. By understanding the importance of wire gauge, reading the chart accurately, and following practical tips, you can make informed decisions that will enhance the performance of your electrical system. Always prioritize safety and compliance with local regulations to ensure a reliable and efficient 12V setup.
